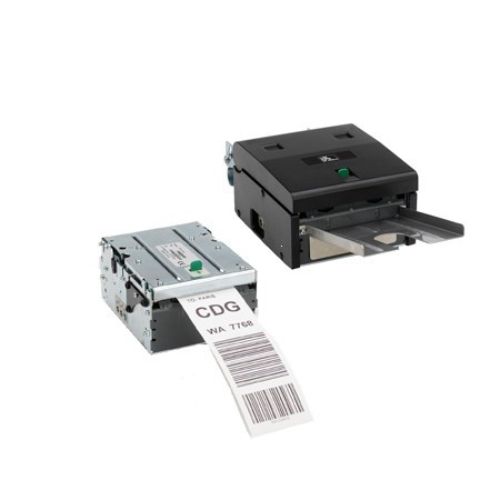

The TTP 2100 printer range is compact, fast and reliable printers for ticket printing on thick media, for example ATB boarding cards, Credit card sized tickets, or bag tags. They are available in desktop or embedded versions.

These compact, low-maintenance kiosk printers save your customers time by quickly printing high volumes of boarding passes, bag tags, tickets, bag passes and more.

Make doing business more enjoyable for your customers with kiosk printers that print high volumes of ATB1 boarding passes, bag tags, tickets and more.

Reduce the wait time with self-service convenience.
Low-maintenance kiosk printers ensure less downtime.
Printing
Print technology
Indicates the method used to print by this product. Direct thermal
Colour
The main colour of the product.
Maximum resolution
Maximum printing resolution. 203 x 203 DPI
Print speed
The maximum speed at which a printer can print. 150 mm/sec
Paper handling
Maximum roll diameter
The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll. 25 cm
Media thickness 0.11 – 0.26 mm
Media thickness (imperial) 0.004 – 0.01″
Maximum media length 60 cm
Maximum media length (imperial) 23.6″
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless. Wired
RS-232 ports
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. 1
Performance
Built-in barcodes Code 39, Interleaved 2/5
Power
AC adapter output current 2 A
Power
Power requirements 24 VDC
System requirements
Compatible operating systems
List of desktop operating systems tested as compatible with this product. Windows 2000, XP, Server 2003, OPOS
Operational conditions
Operating relative humidity (H-H) 35 – 75%
Storage relative humidity (H-H) 10 – 90%
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated. 0 – 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored. -10 – 50 °C
Storage temperature (T-T) 14 – 122 °F
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 1.1 kg
Other features
Dimensions (WxDxH)
Dimensions of the product (Width x Depth x Height). 105 x 145 x 65 mm
Weight (imperial) 1.09 kg (2.4 lbs)
