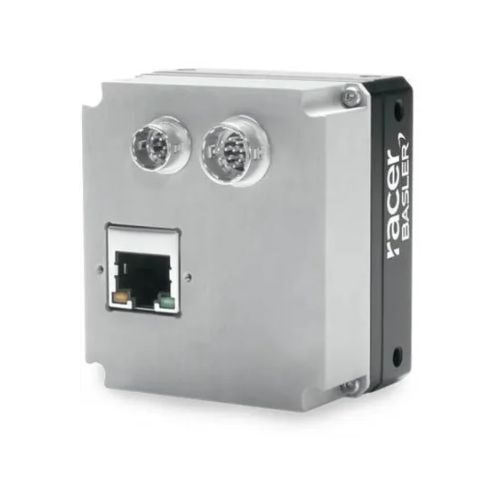

The Basler raL6144-16gm GigE camera with the Awaiba DR-6k-7 CMOS sensor delivers 17 kHz at 6k resolution.
General Information
Order Number 105995
Camera Category Line Scan Camera
Sensor
Sensor Vendor Awaiba
Sensor DR-6k-7
Shutter Global Shutter
Sensor Type CMOS
Resolution (H x V) 6144 px x 1 px
Resolution 6k
Pixel Size (H x V) 7 μm x 7 μm
Line Rate 17 kHz
Mono/Color Mono
Spectrum Visible
Camera Data
Interface GigE
Pixel Bit Depth
8 bits
12 bits
Synchronization
free-run
hardware trigger
software trigger
Exposure Control trigger width or timed
Digital Input 3
Digital Output 2
Power Supply 12-24 VDC
EMVA Data
Quantum Efficiency (typical/minimal) 41.52 % (typical)
Dark Noise (typical/maximal) 8.2 e¯ (typical)
Saturation Capacity (typical/minimal) 24.9 ke¯ (typical)
Dynamic Range (typical/minimal) 69.6 dB (typical)
Signal-to-Noise Ratio (typical/minimal) 43.9 dB (typical)
Housing
Housing Type Box
Housing Size (L x W x H) 36 mm x 56 mm x 62 mm
Lens Mount
C-mount
F-mount
M42 x 0.75
M42 x 1
M58 x 0.75
Operating Temperature 0 °C – 50 °C
Manufacturer
Basler
Conformity
CE
EAC
FCC
GenICam
GigE Vision
IP30
KC
RoHS
UL
BRAND | Basler |
---|---|
MODEL |
